Cast Steel Globe Valves

3300.00 INR/Unit

Get a Price/Quote

Product Details:

Style Horizontal
Product Type Steam Stop valve
Condition New
Usage Used to regulate the flow of steam from the boiler to the steam pipe or from one steam pipe to the other
Pressure High Pressure
Material ASTM A216 Gr. WCB
Part Type Valve
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Cast Steel Globe Valves Price And Quantity

Minimum Order Quantity 01 Unit
Price 3300.00 INR/Unit

Cast Steel Globe Valves Product Specifications

Part Type Valve
Material ASTM A216 Gr. WCB
Style Horizontal
Usage Used to regulate the flow of steam from the boiler to the steam pipe or from one steam pipe to the other
Condition New
Product Type Steam Stop valve
Pressure High Pressure

Cast Steel Globe Valves Trade Information

Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque
Supply Ability 100 Unit Per Day
Delivery Time 1-2 Week
Packaging Details Wooden Box
Main Domestic Market All India
Certifications IBR cerified

Product Description

Technical details

TYPE	STOP VALVE
MATERIAL	CAST STEEL ASTM A216 Gr. WCB
END CONNECTIONS	FLANGED
END FLANGES	ANSI B - 16.5
FACE TO FACE	ANSI B - 16.10
WORKING PRESSURE	CLASS 150 - 22 Kg/sq.cm, CLASS 300 - 58 Kg/sq.cm
TESTING PRESSURE	CLASS 150 - 31 Kg/sq.cm. HYDRAULIC
TESTING PRESSURE	CLASS 300 - 78 Kg/sq.cm. HYDRAULIC
MANUFACTURING STANDARDS	AS PER BS 1873
TESTING STANDARDS	BS 6755 PART - I
SIZE RANGE	1 - 6 INCH

DESCRIPTION	MATERIAL
BODY	ASTM A 216 Gr. WCB
BONNET	ASTM A 216 Gr. WCB
SPINDLE	SS 410
SEAT	SS 410
DIAPHRAGM	SS 410 + STELLITED
HAND WHEEL	C.I./CARBON STEEL
EYE BOLT & NUT	A 193 Gr. B7
CROSS BOLT & NUT	A 194 Gr. 2H
STUD & NUT	A 193 Gr. B7 / A 194 Gr. 2H
GLAND PACKING	GRAPH. ASBESTOS WITH SACRIFICIAL INHIBITOR & INCONEL WIRE REINFORCEMENT

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Steam Valves' category

Bronze Steam Valves Price Range : 12000.00 - 55000.00 INR/Unit Minimum Order Quantity : 01 Pressure : Low Pressure Size : 15mm 80 mm Usage : used to regulate the flow of steam from the boiler to the steam pipe or from one steam pipe to the other Product Type : Steam Stop Valve Part Type : Valve Material : Bronze Condition : New

Send Inquiry

Cast Steel Check Valves (NRV) Price : 3000 INR/Unit Minimum Order Quantity : 01 Pressure : High Pressure Size : 1 Usage : To allow steam flow in one direction, and automatically prevent backflow Product Type : Non Return Valves Part Type : Valve Material : ASTM A216 Gr. WCB Condition : New

Send Inquiry

Cast Iron Check Valves (NRV) Price : 5000 INR/Unit Minimum Order Quantity : 01 Pressure : Low Pressure Size : 15 mm 150 mm Usage : To allow steam flow in one direction, and automatically prevent backflow Product Type : No return valve Part Type : Valve Material : Cast Iron IS 210 FG 150 Condition : New

Send Inquiry

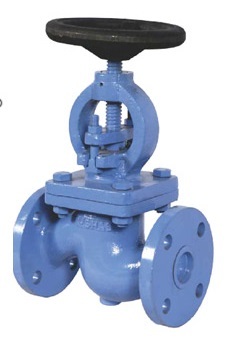

Cast Iron Steam Globe Valves Price Range : 17000.00 - 25000.00 INR/Unit Minimum Order Quantity : 01 Pressure : Low Pressure Size : 15mm to 150 mm Usage : Used to regulate the flow of steam from the boiler to the steam pipe or from one steam pipe to the other Product Type : Steam Stop valves Part Type : Valve Material : Cast Iron IS 210 FG 150
