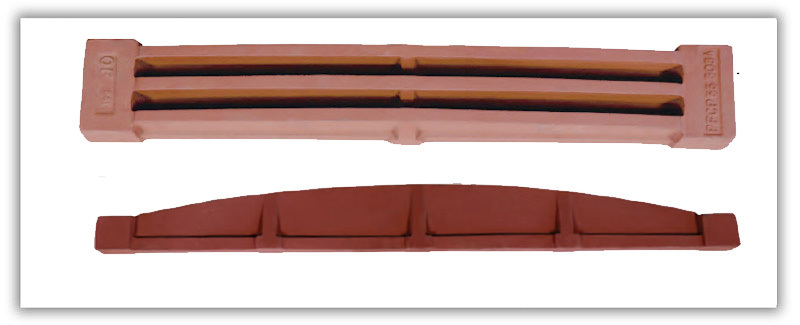

Send InquiryGrate Bar Castings
Price 800 INR/ Unit
MOQ : 01 Unit
Grate Bar Castings Specification
- Condition
- New
- Usage
- grate bar are used in the furnace upon which the fuel is burned. These bars are manufacture with various alloy compositions, depends on the fuel used in the boiler. The intermittent gap in the grate bar / fire bars allows the air flow for combustion.
- Material
- Alloy Cast iron, SG Iron alloy, High Chrome alloys
- Part Type
- Heating Element
- Product Type
- Grate Bar
Grate Bar Castings Trade Information
- Minimum Order Quantity
- 01 Unit
- Supply Ability
- 100 Units Per Day
- Delivery Time
- 1-2 Week
- Packaging Details
- Wooden Box Packing
- Main Domestic Market
- All India
About Grate Bar Castings
Dimensional details
GRATE BAR SINGLE
| DIMENSIONS IN MM | |||||
| SR NO | A | B | C | D | E |
| G1 | 530 | 45 | 32 | 12 | 36 |
| G2 | 890 | 47 | 32 | 12 | 47 |
| G3 | 822 | 45 | 32 | 8 | 45 |
| G4 | 730 | 50 | 32 | 8 | 45 |
| G5 | 1010 | 50 | 32 | 8 | 45 |
| G6 | 540 | 45 | 35 | 12 | 50 |
| G7 | 615 | 45 | 35 | 12 | 50 |
| G8 | 690 | 45 | 35 | 12 | 50 |
| G9 | 578 | 45 | 32 | 12 | 55 |
GRATE BAR SUPPORT
| DIMENSION IN MM | |
| SR NO | A (Length) |
| S1 | 740 |
| S2 | 1066 |
| S3 | 1422 |
| S4 | 1132 |
| S5 | 940 |
| S6 | 1280 |
| S7 | 1120 |
| S8 | 800 |
| S9 | 1150 |
| S10 | 1030 |
| S11 | 930 |
| S12 | 1308 |
| S13 | 642 |
| S14 | 860 |
| S15 | 980 |
| S16 | 1010 |
Grate Bar Triplex
| DIMENSION IN MM | |||||
| SR NO | A (L) | B | C(W) | D | E |
| T1 | 730 | 50 | 96 | 15 | 10 |
| T2 | 530 | 50 | 96 | 15 | 10 |
| T3 | 630 | 50 | 96 | 15 | 10 |
| T4 | 690 | 45 | 105 | 15 | 15 |
| T5 | 540 | 45 | 105 | 15 | 15 |
| T6 | 615 | 45 | 105 | 15 | 15 |
| T7 | 690 | 45 | 90 | 15 | 8 |
| T8 | 615 | 45 | 90 | 15 | 8 |
| T9 | 615 | 45 | 96 | 15 | 10 |
| T10 | 540 | 50 | 90 | 15 | 8 |
| T11 | 540 | 50 | 96 | 15 | 10 |
| T12 | 578 | 50 | 90 | 15 | 8 |
| T13 | 578 | 50 | 96 | 15 | 10 |
| T14 | 700 | 50 | 105 | 15 | 15 |
